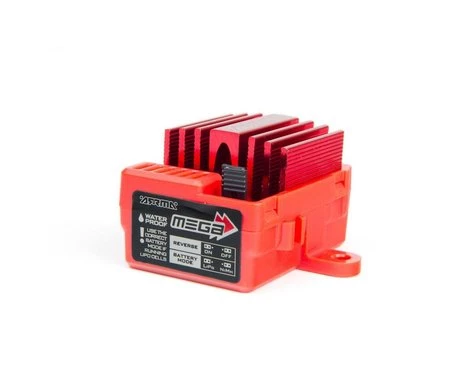

Arrma Mega 4×4 Brushed 2S ESC

This is an Arrma Mega 4×4 Brushed 2S ESC, intended for use with Mega 4×4 Senton, Typhon, and Granite kits. This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.

• Fitted with reliable IC3 connector
• Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions
• Cool-looking integrated red anodized heatsink for increased heat dissipation
• Durable motor and battery connection cables for safe and reliable power transfer
• Waterproof power switch
• Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit
• Etched ‘ARRMA’ livery for cool looks and quality assurance

Battery usage: 7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo

Low Voltage Cut-Off (LVC): 3.2V per cell

Thermal Protection Temperature: 95°C / 203°F

BEC Voltage: 5V

BEC Current: 2A

ESC Length: 47mm/1.85″

ESC Height: 21mm/0.83″

ESC Width: 34mm/1.34″

ESC Weight: 70g/2.47oz

Receiver Wire Length: 160mm/6.3″

Battery Wire Length: 90mm/3.54″

• (1) ARRMA MEGA Brushed ESC
