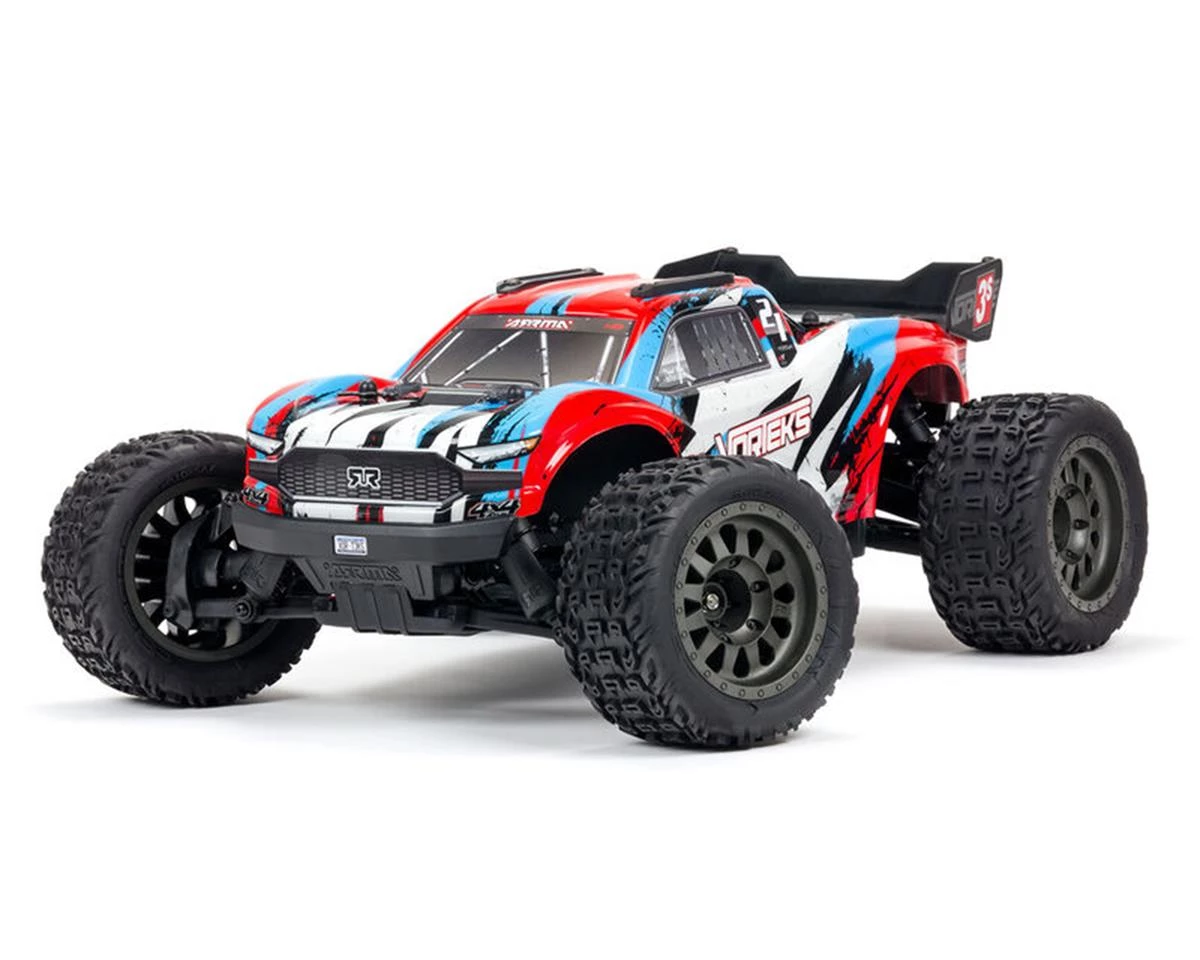

Arrma Vorteks 4X4 3S BLX 1/10 RTR Brushless Stadium Truck (Red) w/2.4GHz Radio

The Arrma Vorteks 4X4 3S BLX represents the highest level of speed and technology found yet in the proven tough ARRMA 4X4 platform. The Vortex 4×4 includes a 2S or 3S compatible Spektrum Firma 3200Kv brushless motor, and is a rocket right out of the box. Using a 3S LiPo battery and an optional pinion gear, it is the first ARRMA 4X4 3S BLX model capable of 60mph and more!

The proven tough ARRMA 4X4 platform lets you bash at high speeds in almost any environment — off-road, on dirt and grass, on parking lots and over paved and asphalt surfaces. Its durability comes from a strong composite chassis featuring extended height dirt defenders, oil-filled shocks with silicone O-rings, metal geared differentials and more. Rugged bumpers and high-traction dBoots Katar tires mounted on tough, gun-metal colored wheels add to its unstoppable performance. The VORTEKS 4X4 3S BLX also includes a sleek, new stadium truck body with tough, injection-molded wing and protective roof skids.

ARRMA adds the security of advanced Spektrum electronics to the VORTEKS Stadium Truck’s speed and toughness to create a totally exhilarating bashing experience. With its included DX3 DSMR 2.4GHz radio system, SR6200A receiver and Firma 100A ESC, this is the first ARRMA 1/10 scale 4X4 model to provide the benefits of AVC (Active Vehicle Control) and Smart technology straight out of the box.

With the AVC system’s on-demand traction control, you can dial-in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt. When you don’t want the extra traction, just dial back the stability. The DX3 radio’s AVC system works behind the scenes, making hundreds of minute steering and throttle adjustments per second to keep the VORTEKS Stadium Truck precisely on the line you want to hold.

Download the optional Spektrum Dashboard app to your mobile device — it’s available free from the iPhone App Store and Google Play — to take full advantage of the Smart electronics’ telemetry capabilities. Once you connect your mobile device wirelessly via Bluetooth to the VORTEKS Stadium Truck’s DX3 transmitter, you can use it to view top speed, battery voltage and other essential data in real time (requires an optional BT2000 Bluetooth Module, available separately).



• Stadium truck body with tough, injection molded wing and protective roof skids
• Adjustable body mounts
• High-traction, vented dBoots® Katar™ multi-terrain tires mounted to tough, gun-metal color wheels
• Spektrum™ 3660 3200Kv brushless motor with ARRMA® heatsink and cooling fan and Safe D pinion
• Spektrum™ Firma™ 100A Smart ESC
• Spektrum™ 2.4GHz DX3 transmitter and SR6200A receiver Smart radio system with AVC® (Active Vehicle Control®)
• Spektrum™ SPMS651 metal-geared servo
• Strong composite chassis with extended height dirt defenders
• Easy-access modular design
• Adjustable turnbuckles
• Steering system with stone clearance
• Adjustable ride height
• Wheelie bar
• Rubber shielded bearings throughout
• Durable 37T 1.35 module metal differential gears and silicone O-rings
• Castellated slipper pad and sliding gear mesh
• Plastic locknut for slipper
• 2-Year limited warranty; see website support for details.
• Double wishbone suspension front and rear
• Oil-filled shocks with silicone O-rings

Approximate Assembly Time: No assembly required

Ball Bearings: Full set, rubber shielded

Battery: Sold Separately

Body: Painted, decalled and trimmed

Brakes: Integral with ESC

Chassis: Molded Composite

Completion Level: Ready-To-Run

Differential: 2 Gear Diffs

Drivetrain: 4WD

Final Drive Ratio: 9.03

Power Type: Electric

Gear Pitch: 0.8m

Internal Gear Ratio: 2.85

Motor Type: Brushless – Sensorless

Pinion: 18T

Product Height: 6.42″ (163 mm)

Product Length: 18.5″ (470 mm)

Product Weight: 6.49 lbs (2.95kg)

Product Width: 13.31″ (338 mm)

Radio: Included

Receiver: Included

Scale: 1/10

Servos: Included

Shock Type: Oil-Filled, Coil-Over Springs

Speed Control: Included

Spur Gear: 57T

Suspension: Independent

Vehicle Type: Stadium Truck

Wheelbase: 11.3″ (287 mm)

• (1) ARRMA® VORTEKS™ 4X4 3S BLX 1/10 Scale 4WD Electric Stadium Truck RTR
• (1) Spektrum™ Firma™ 100A Smart Waterproof ESC
• (1) Spektrum™ Firma™ 3660 3200Kv Brushless Motor
• (1) Spektrum™ 2.4GHz DX3 Smart DSMR® 3-Channel Transmitter
• (1) Spektrum™ SR6200A AVC® Receiver
• (1) Spektrum™ SPMS651 7kg Waterproof Metal-Geared Digital Servo
• (1) 23T Spline servo saver
• (1) Product Manual

• 2S or 3S 5000mAh 50C Hardcase LiPo Battery w/EC5 or iC5 connector (Maximum battery dimensions 156x51x48mm)
• Compatible Charger
• (4) AA Batteries
• LiPo Safe Charging Bag
